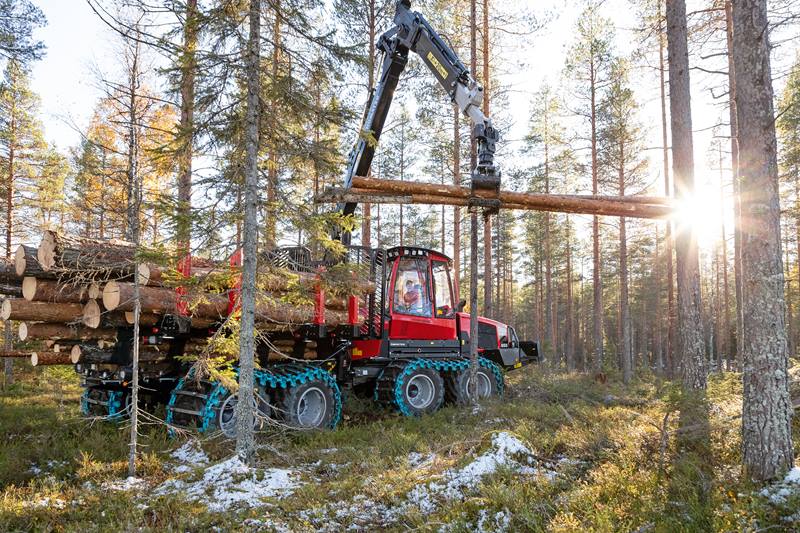

Komatsu 855

Powerful yet compact forwarder

Komatsu 855

A versatile forwarder, designed for both thinning and final felling. Combining power with a compact design, it works productively in all conditions.

Download brochure

Gross load

14 000 kg (30,865 lb)

Power

170 kW DIN at 1900 rpm

Stage V and Tier 4F (Stage II: 165 kW DIN at 1 900 rpm)

Torque

950 Nm at 1500 rpm

Stage V, Tier 4F and Stage II

Tractive force

187 kN (42,000 lbf)

Features

Komatsu 855

A machine for you

-14-tonne load capacity
-130F crane in 8 / 10m reach – possibility to choose the powerful 145F crane (option)
-Choose between options like tiltable crane pillar and XT transmission
-Customise your load space with the Flex Bunk or Load Flex options
-26.5“ wheels - Choose between wheel width 600 / 710 / 800 mm
-Extra long rear frame for double loads (option)
-Choose between different grapple options to find the one that suits you

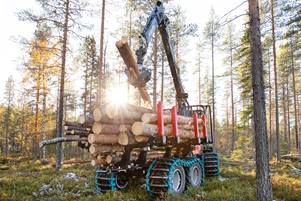

Komatsu forwarder

Flexibility and strength for versatile assignments

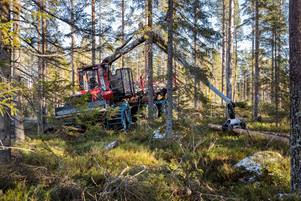

Our all-round forwarders have a compact size that allows them to manoeuvre easily, even in tighter stands, while the strong transmission and powerful crane allow them to work with high productivity.

In other words, they are the ideal choice for those who work in both late thinning operations and lighter final felling.
Komatsu forwarder

Customise your load space for increased productivity

Komatsu forwarders offer flexible load areas with customisable solutions that increase your productivity. With the FlexBunk option, you can easily customise the bunks to match your specific work requirements.

If you choose the optional LoadFlex package instead, you get a flexible and efficient load space with optimised capacity. The articulated bunks are easily adjusted with the forwarder's crane, allowing you to customise the width of the load space for each individual job. What's more, the changeover is very fast, so you're ready to go from transport to production quickly.

The hydraulically height-adjustable stakes make crane operations faster and also contribute to better fuel economy.
Komatsu forwarder

The transmission for tough conditions

Komatsu forwarders are built for good off-road performance, but for particularly tough conditions, something extra is sometimes needed. That’s why we offer the XT transmission for some of our forwarder models.

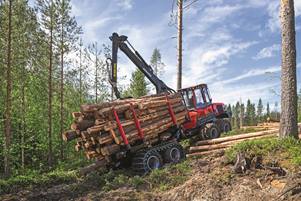

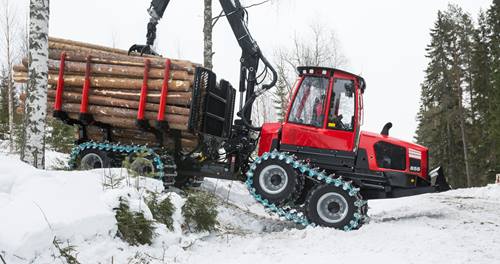

A Komatsu 855 with the XT option is equipped with a more powerful bogie with hub reductions. The hub reductions are a great advantage when working in difficult conditions, such as steep, snowy or wet terrain, as they increase the service life of the bogie and thus the reliability of the machine.
Komatsu grapple

Handle timber like a pro

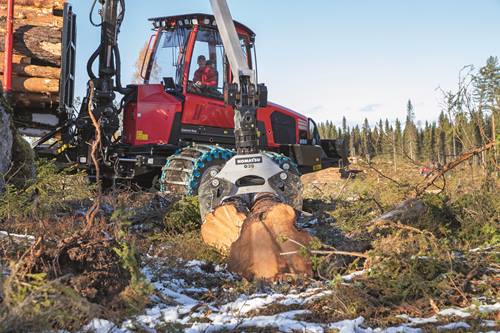

Komatsu grapples are designed to deliver high productivity in tough environments. With a large opening and good retraction properties, the grapples make it easy to gather, straighten and grip timber quickly and efficiently.

The 11 different models, including specialised variants for bioenergy and heavy-duty applications, ensure there is a grapple for every need. Their robust design and high durability make them a reliable tool, helping you to work more efficiently and profitably.
More forwarder benefits

Some of our forwarder options

Komatsu 855

Flex Bunk - Complete flexibility

Flex Bunk is our flexible bunk system that can be customised to meet your specific needs. The standard version includes fixed stakes and a standard bunk width, but with several options available to allow you to easily tailor your load space.

Hydraulically adjustable stakes provide faster crane operations and improved fuel economy. Using the widening kit, the width of the load space can be easily adjusted using the crane as required*.

*Not for 835TX

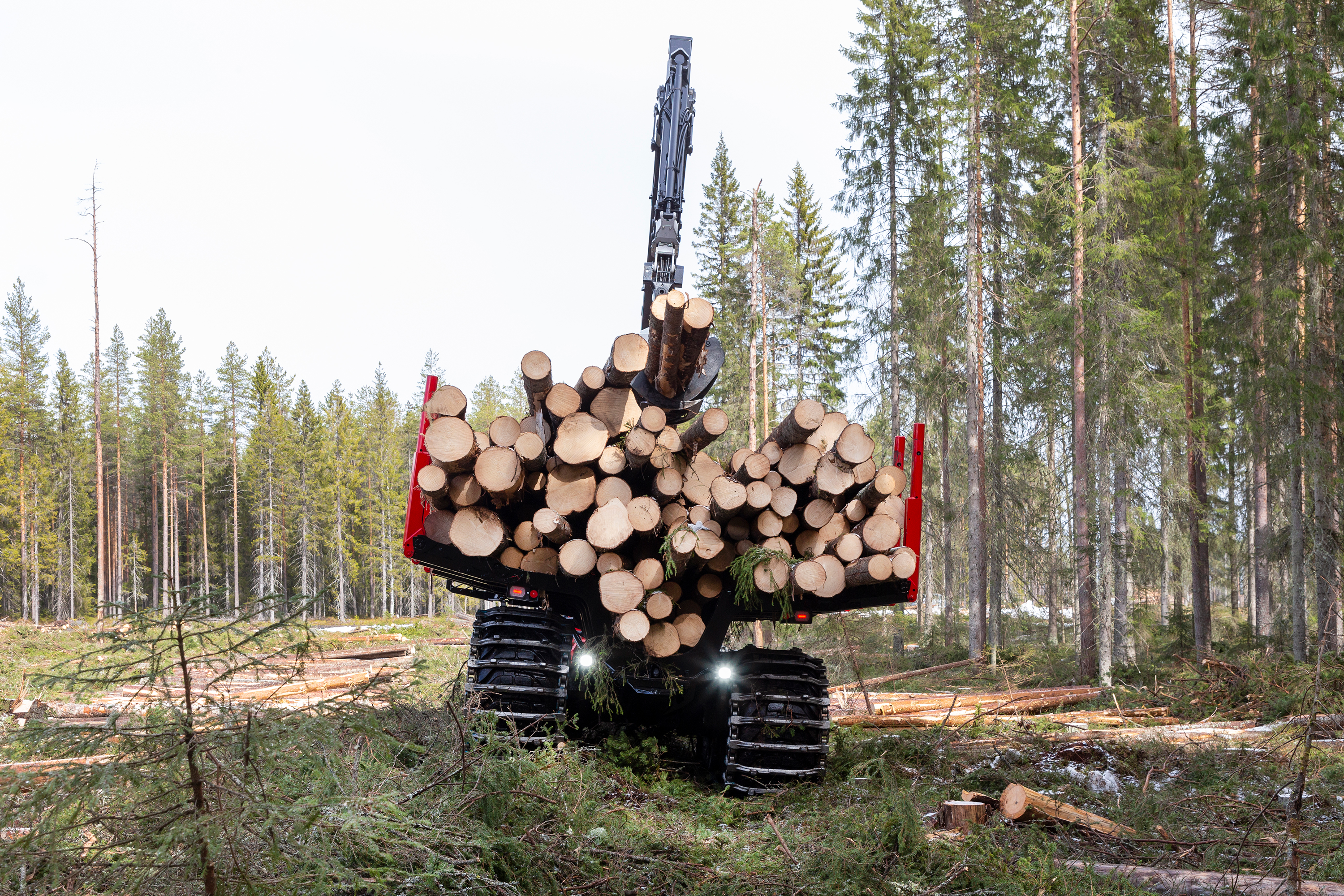

Komatsu 895

Load Flex - Premium load performance

The Load Flex option optimises both flexibility and load capacity. The cleverly designed bunks allow you to easily adjust the width of the load space for each job. Narrow, medium or wide - the articulated bunks are quickly adjusted using the forwarder's crane.

The wide load space provides a low centre of gravity for increased stability and smoother off-road driving. The option also includes hydraulically adjustable stakes, for more efficient crane operation and lower fuel consumption.

MaxiFleet

Smart Forestry

Smart Forestry gives you access to a collection of digital services that help make the workplace safe, smart, productive and sustainable - whether you have one or a hundred forest machines. You can keep track of your machines, collaborate with colleagues, and make wise decisions based on facts.

Smart Forestry consists of three different applications, making it easy for you to find the one that suits you and your business.

More About Smart Forestry
Comfort Ride 2021

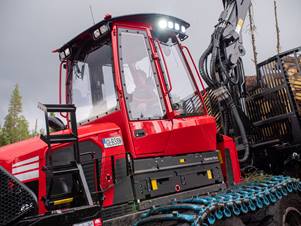

Komatsu Comfort Ride

A forwarder operator spends many hours a day in the cab, making a pleasant and comfortable work environment extremely important. Komatsu Comfort Ride efficiently dampens jolts and vibrations, ensuring an ergonomic work environment. This in turn contributes to higher productivity and better profitability.

The new generation of Komatsu Comfort Ride comes with comfort-enhancing features like adjustable sideways firmness and automatic side levelling at standstill and at low speed. The elevated unloading mode now also works at low speed, to make it smoother to reposition the forwarder at the landing. Great news for all forwarder operators!

Download brochure

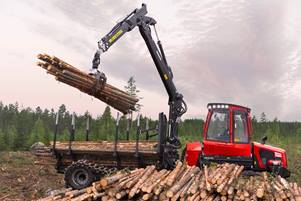

Komatsu Smart Crane

Smart Crane

Since such a large share of a forwarder operator's working day involves crane operation, increased efficiency offers great potential. Smart Crane provides the operator with advantages such as simpler crane operation, less physical strain and higher productivity. Advantages that benefit both profitability and the operator's wellbeing. Everything to make it as easy as possible for the operator to focus on what is truly important – moving timber to the roadside.

Download brochure
SpeedShift

Speed Shift

Speed Shift is a smart gearbox solution with dual hydrostatic motors, with the forwarder automatically changing up a gear as the operator increases speed. This enables the machine to accelerate continuously within the full speed range without any additional operator intervention. In this way, the engine can work at optimal engine speed most of the time, which saves fuel and provides a quiet and more comfortable work environment.

The automatic gear changes enable increased transport speed where ground conditions allow. This can include, for example, relatively flat access roads in otherwise hilly terrain that can be covered at faster speed. The longer the forwarding roads, the greater the benefit offered by Speed Shift.

Specifications

855

Overview

Komatsu 855 forwarder dimensions
A. Width

With 600/55x26,5 tyres: 2 730 mm (8'11").

B. Length, total

130F: 10 080 mm (33'1") , 145F: 10 260 mm (33'8") (with shortest rear frame)

C. Length, front axle to middle joint

1 800 mm (5'11")

D. Length, middle joint to rear axle

130F: 3 300 mm (10'10") , 145F: 3 480 mm (11'5") (with shortest rear frame)

E. Transport height, with hoses and tire compression

130F: 3 920 mm (12'10") 130F with crane tilt: 3880 mm (12'9"), 145F: 3 930 mm (12'11")

F. Ground clearance, at steering joint

8WD: 710 mm (2'4")

Note

Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

6WD: 16 500 kg (36,376 lb), 8WD: 18 100 kg (39,904 lb)

Type

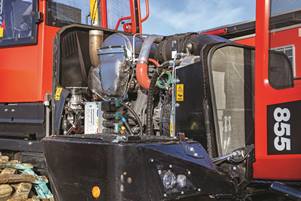

AGCO Power, 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4F and Stage II.

Stroke volume

6.6 l (1.7 gal)

Power

EU Stage V and Tier 4F: 170 kW DIN at 1 900 rpm. Stage II: 165 kW DIN at 1 900 rpm

Torque

EU Stage V, Tier 4F and Stage II: 950 Nm at 1 500 rpm

Fuel Tank

160 l (42.3 gal)

Gross load

14 000 kg (30,865 lb)

Bunk area

4,4 - 5,9 m² , depending on options and market

Crane

Komatsu 130F, Komatsu 145F

Reach

130F: 8 m (26'3") / 10 m (32'10"), 145F: 8.5 m (27'11") / 10 m (32'10")

Gross lifting torque

130F: 127 kNm (93,670 lb-ft), 145F: 145 kNm (106,947 lb-ft)

Gross slewing torque

130F: 28.7 kNm (21,168 lb-ft), 145F: 38 kNm (28,027 lb-ft)

Rotator

G121/GT151

Grapple

Komatsu G28

Max hydraulic flow

280 l/min (74 gal/min) at 2 000 rpm

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Driving Speed

0 - approx. 25 km/h (15,5 mph)

Tractive Force

187 kN (42,000 lbf)

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
